Map

InstallationCopy Anchor Link

Map ships with the library — install it once, then import:

import { Map } from "@delacour/react-native-ui/map";

Or copy the source into your project, to own and edit it:

bunx delacour@latest add map

plugins: ["@maplibre/maplibre-react-native"],

UsageCopy Anchor Link

import { Map } from "@/components/ui/map";
import { View } from "react-native";

export default function Example() {
  return (
    <View className="flex-1 justify-center p-4">
      <Map center={[174.776, -41.286]} className="h-96" zoom={13}>
        <Map.Marker accessibilityLabel="Museum" lngLat={[174.782, -41.2905]}>
          <Map.Pin />
          <Map.Label>Museum</Map.Label>
        </Map.Marker>
        <Map.Controls />
      </Map>
    </View>
  );
}

AnatomyCopy Anchor Link

<Map ref={ref} center={center} zoom={12}>
  <Map.Marker lngLat={lngLat}>
    <Map.Popup title="…" />
    <Map.Pin />
    <Map.Label />
  </Map.Marker>
  <Map.Route coordinates={path} />
  <Map.Arc from={from} to={to} />
  <Map.Controls />
  <Map.UserLocation />
</Map>

Coordinates are [longitude, latitude] everywhere — GeoJSON's order, so a coordinate copied from a web map lands in the right hemisphere.

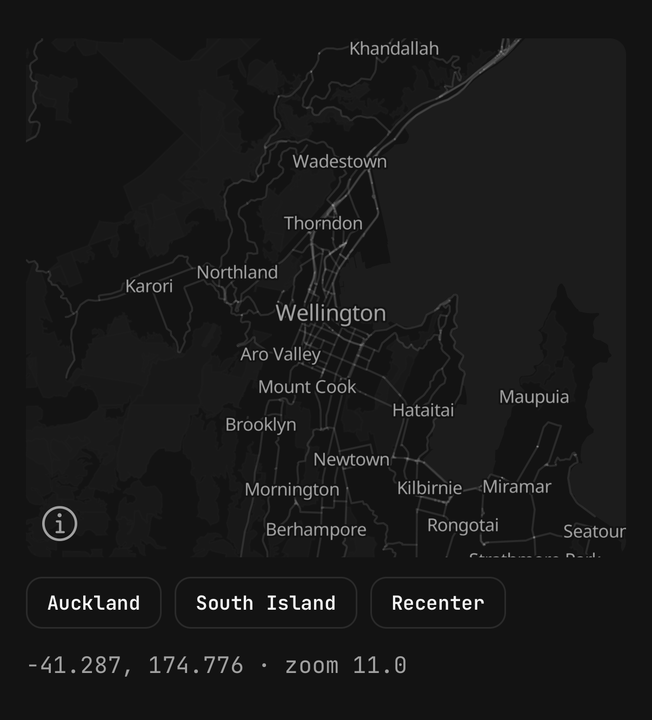

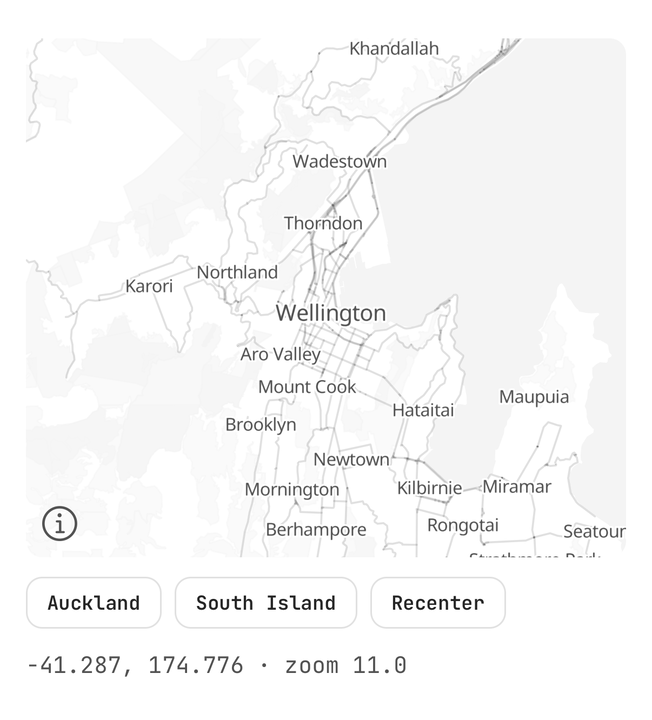

Initial view and the refCopy Anchor Link

center, zoom and bounds set the view the map opens on; changing them later does not move it. The ref moves the camera, and useMap() hands the same handle to anything inside the map.

const ref = useRef<MapHandle>(null);

<Map center={wellington} ref={ref} zoom={11} />

ref.current?.flyTo({ center: auckland, zoom: 12 });
ref.current?.fitBounds([166.3, -46.7, 174.4, -40.4], { padding: 40 });
ref.current?.recenter();

Markers and labelsCopy Anchor Link

A marker is a React view on a coordinate, and it anchors on its pin's tip, so a label under the pin moves nothing. Give it onPress and it becomes a button.

<Map.Marker accessibilityLabel="Museum" lngLat={museum} onPress={() => setSelected("museum")}>
  <Map.Pin tone="primary" />
  <Map.Label>Museum</Map.Label>
</Map.Marker>

PopupsCopy Anchor Link

A themed card over the marker's pin — write it before the pin. It holds no open state: render it while the place is selected. Outside a marker it needs its own lngLat.

<Map.Marker accessibilityLabel="Corner café" lngLat={cafe} onPress={() => setOpen(true)}>
  {open ? (
    <Map.Popup title="Corner café">
      <Text.Caption>Open until 6 pm</Text.Caption>
    </Map.Popup>
  ) : null}
  <Map.Pin />
</Map.Marker>

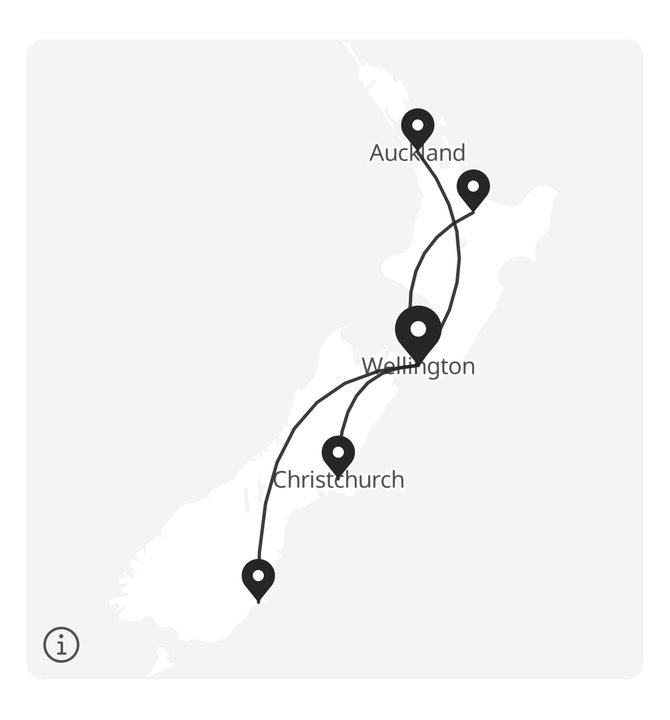

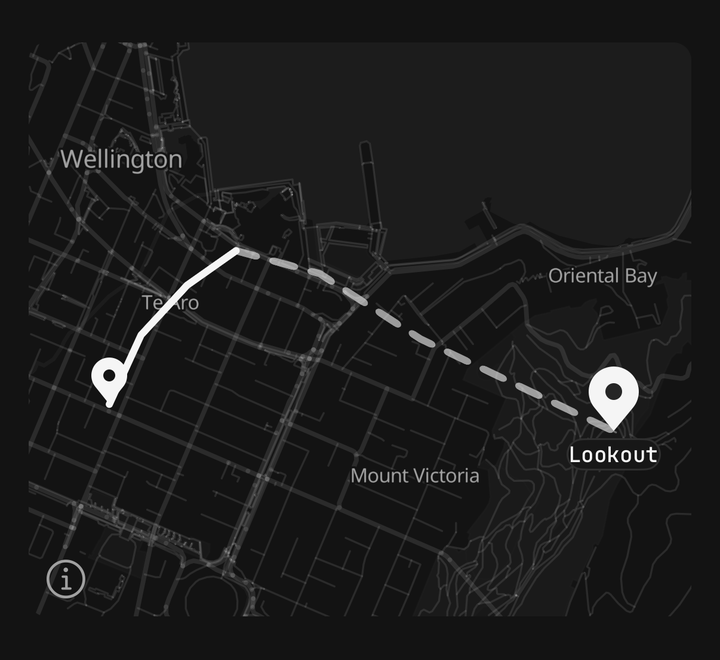

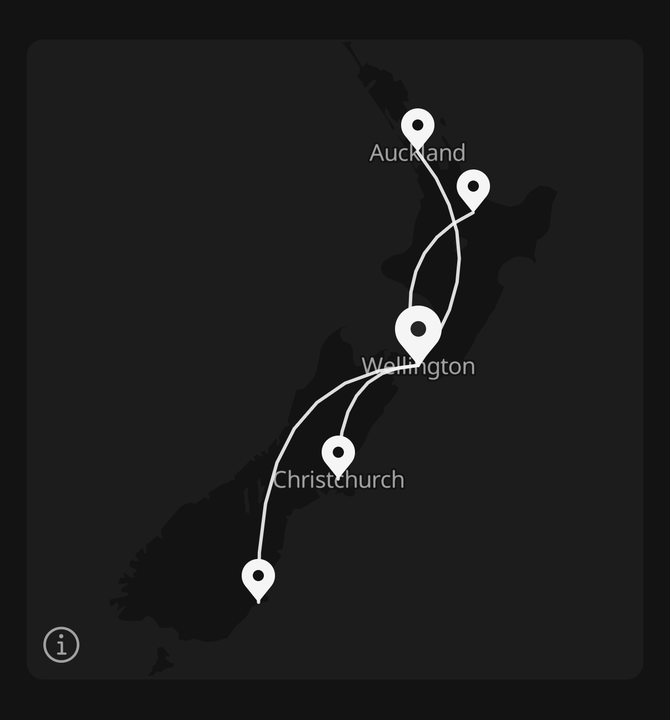

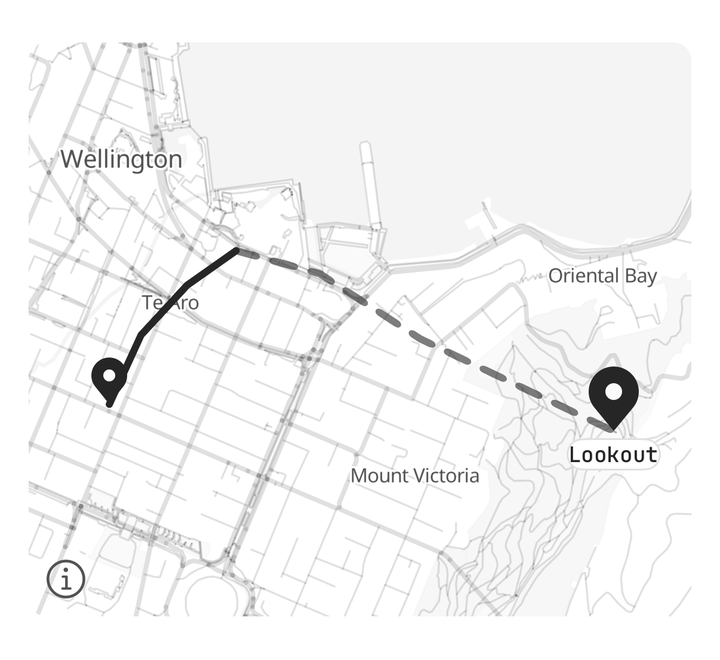

Routes and arcsCopy Anchor Link

A route is a line through a list of coordinates; an arc is a curve between two points, for a connection rather than a path. Both are the theme's primary unless given a colour.

<Map.Route coordinates={walked} width={4} />
<Map.Route coordinates={ahead} isDashed opacity={0.6} />
<Map.Arc curvature={0.25} from={wellington} to={auckland} />

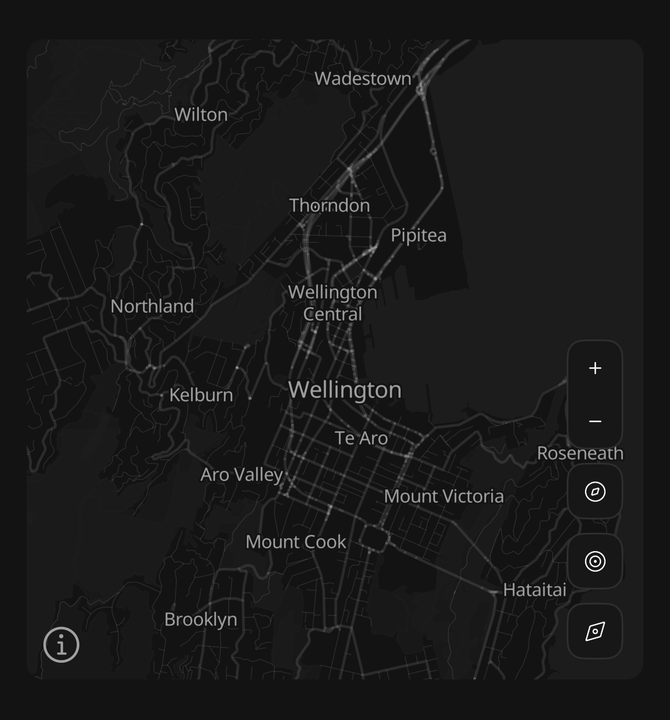

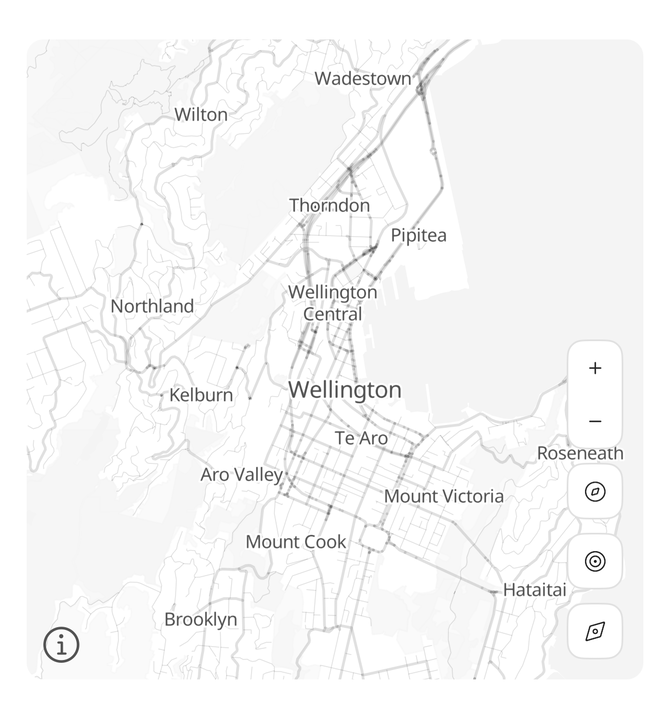

Controls and locationCopy Anchor Link

Zoom, compass, recenter and locate buttons, floated in a corner. Locate and Map.UserLocation turn on the map's location updates, which ask for location permission the first time. The dot is drawn in the theme's primary, ringed in background.

<Map.Controls corner="bottom-right" showCompass showLocate showRecenter />
<Map.UserLocation showsHeading />

ThemingCopy Anchor Link

The basemap is painted from the theme's tokens on both platforms — land background, water and parks muted, roads and buildings border, labels muted-foreground haloed in background. Retune the theme and the map follows, light and dark included; it reads the app's active theme, never the system's.

The tiles are OpenFreeMap's OpenStreetMap vector tiles: free, with no key. The data is © OpenStreetMap contributors, so the map keeps its attribution button, bottom left.

To use your own tiles — any OpenMapTiles-schema source, such as MapTiler — build the same themed style on them, or pass any MapLibre style:

import { useThemeColor } from "@/hooks/use-theme-color";
import { buildMapStyle, Map } from "@/components/ui/map";

function StoreMap() {
  const style = buildMapStyle(
    {
      background: useThemeColor("background"),
      border: useThemeColor("border"),
      muted: useThemeColor("muted"),
      mutedForeground: useThemeColor("muted-foreground"),
    },
    {
      tiles: "https://api.maptiler.com/tiles/v3/tiles.json?key=…",
      glyphs: "https://api.maptiler.com/fonts/{fontstack}/{range}.pbf?key=…",
      font: "Noto Sans Regular",
    }
  );

  return <Map mapStyle={style} />;
}

AccessibilityCopy Anchor Link

The map is announced as "Map". Each marker is announced by its accessibilityLabel, and is a button when it has an onPress. The pin is hidden from assistive technology; control buttons are labelled by what they do.

API ReferenceCopy Anchor Link

MapCopy Anchor Link

Extends ViewProps.

MapHandleCopy Anchor Link

Map.MarkerCopy Anchor Link

Extends ViewProps.

Map.PinCopy Anchor Link

Map.LabelCopy Anchor Link

Map.PopupCopy Anchor Link

Map.ControlsCopy Anchor Link

Map.RouteCopy Anchor Link

Map.ArcCopy Anchor Link

Map.UserLocationCopy Anchor Link
